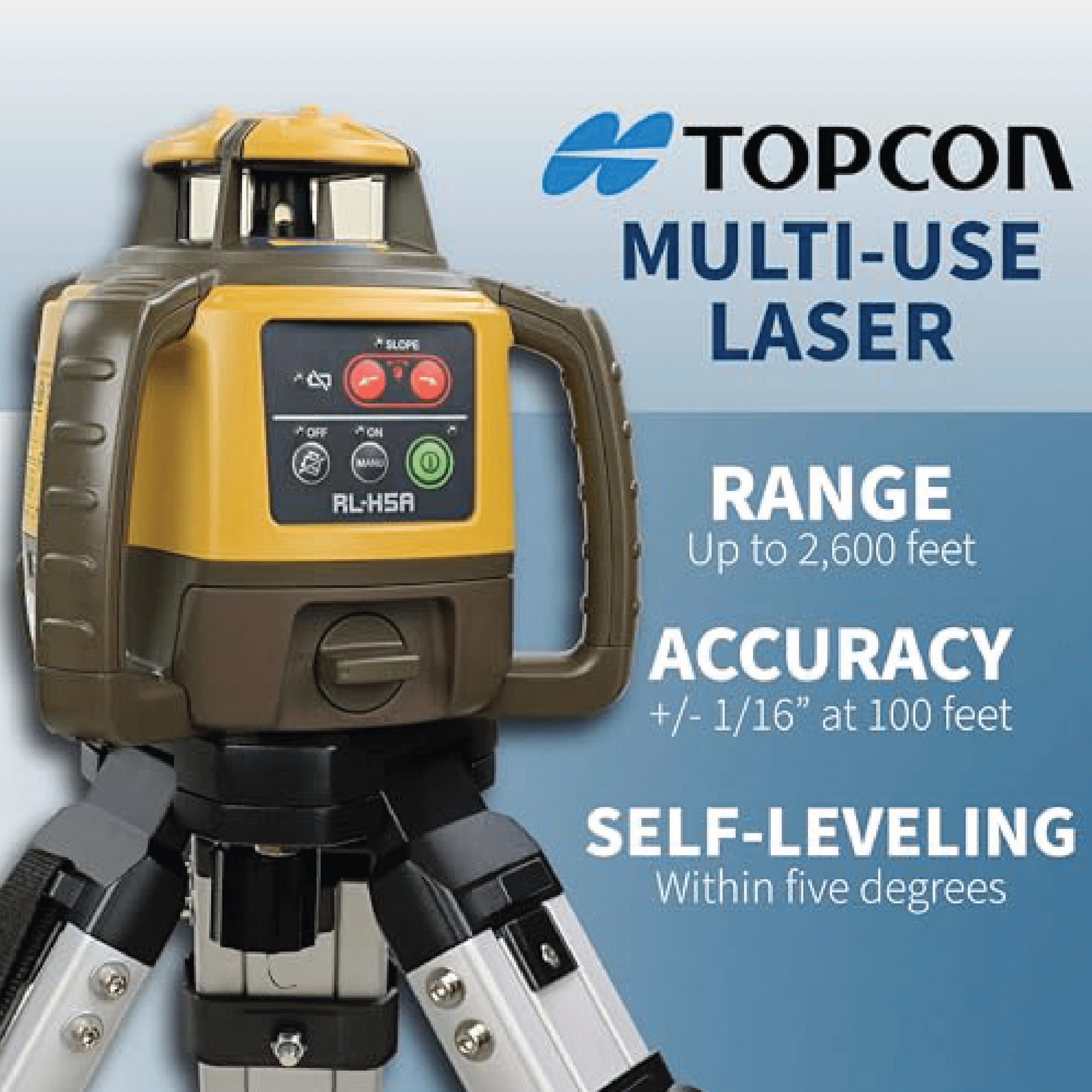

Topcon RL-H5A Self-Leveling Laser PS.DB Kit with LS-80L Receiver, Measuring Rod 10ths and Tripod - 1035258-01 (uses Alkaline Batteries)

★★★★★ 4.4 138 reviews

US$324.32
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by gastromatec.de
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$324.32
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Jul 9
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by gastromatec.de
Free 30-day returns Details

Product details

Management number 230802089 Release Date 2026/06/18 List Price US$324.32 Model Number 230802089
Category

<p>The Topcon RL-H5A auto-leveling laser level is a reliable and versatile tool designed to deliver precision on any job site. With its super-fast self-leveling motors, it ensures accuracy within +/- 10 arc seconds, making it perfect for tasks like checking grade or setting batter boards with confidence. The laser level boasts a powerful 2.4mW diode, offering a working range of 2,600 feet in diameter when used with a detector, making it ideal for machine-mounted receivers. The visible 635nm beam allows for interior alignment applications, including setting piers, decking, walls, and even cabinets. These features make the Topcon RL-H5A Laser a superior choice, offering more than twice the capability compared to other options on the market.</p><p>Key features of the Topcon RL-H5A include a self-leveling horizontal beam, long-range operation up to 2,600 feet in diameter, and high horizontal accuracy of 1/16-inch at 100 feet. It also features a simple and intuitive manual slope capability and a tough IP66 rating for dust and water resistance. The self-leveling range is ± 5 degrees, and it boasts a long alkaline battery life of up to 100 hours, with an out-of-level notification for added safety.</p><p>The package includes the RL-H5A Horizontal Laser, the LS-80X Long Range Laser Receiver Sensor (1046259-01), a receiver rod clamp holder (6 312890112), and a rugged hard-shell carrying case for easy transportation and protection of your equipment.</p>

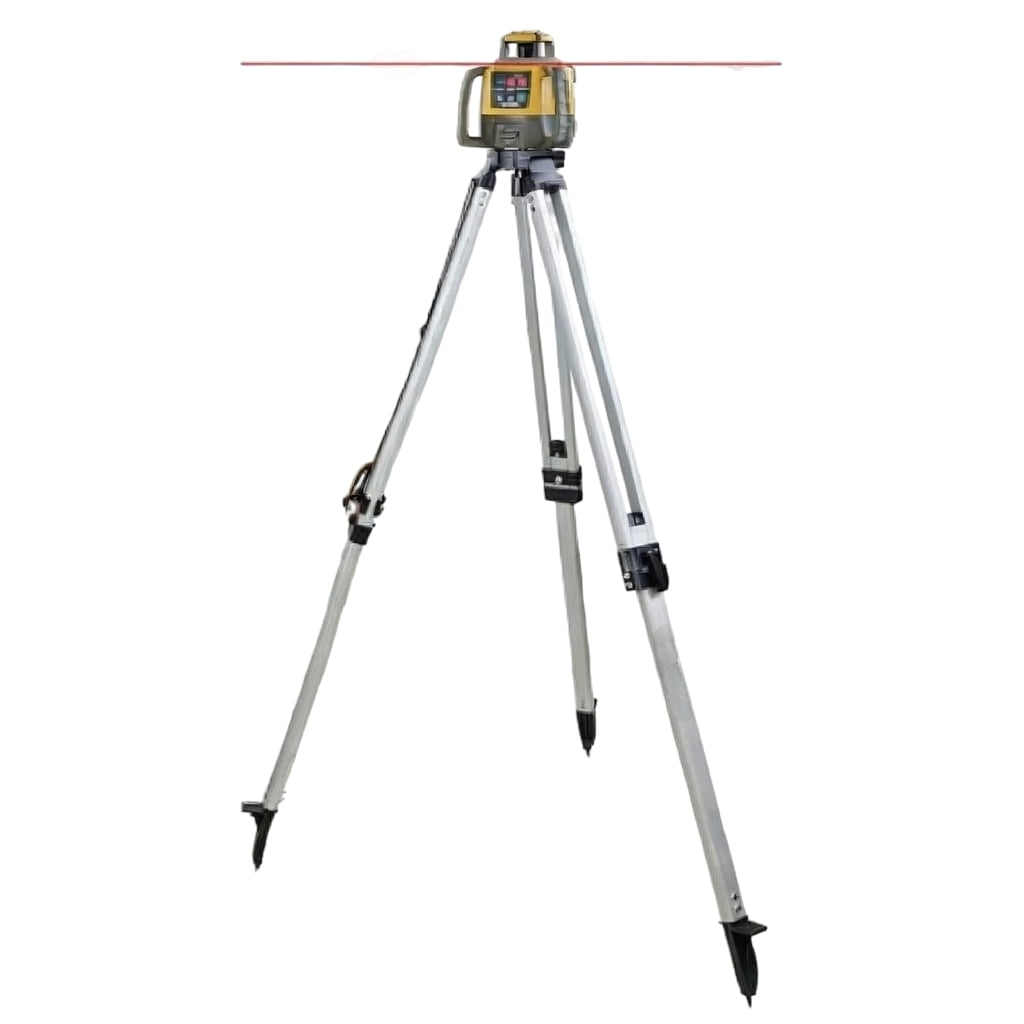

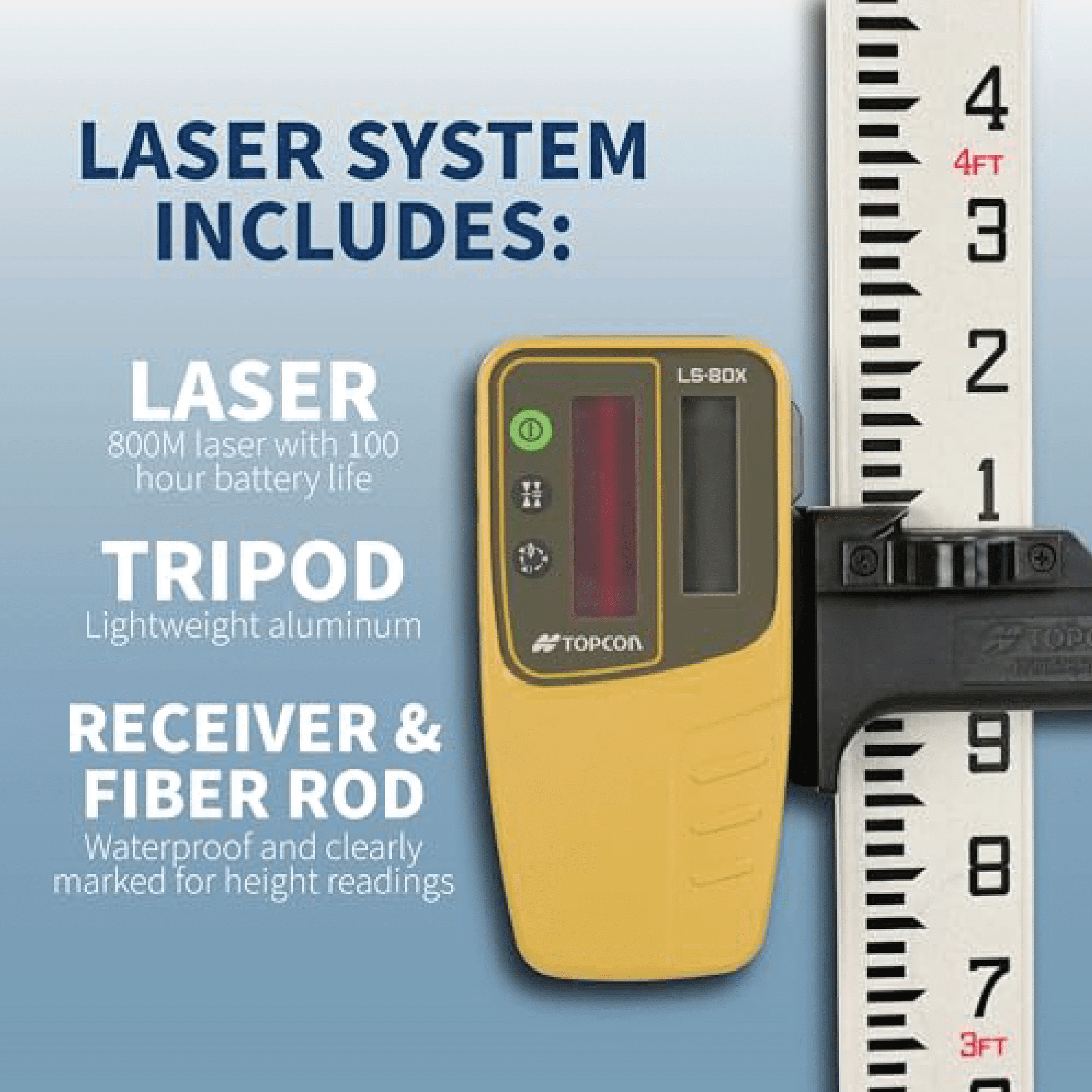

  • Complete Ready-to-Use Kit: Includes RL-H5A laser, LS-80X receiver with holder, heavy-duty aluminum tripod, and 13ft fiberglass grade rod in inches for immediate leveling and grading

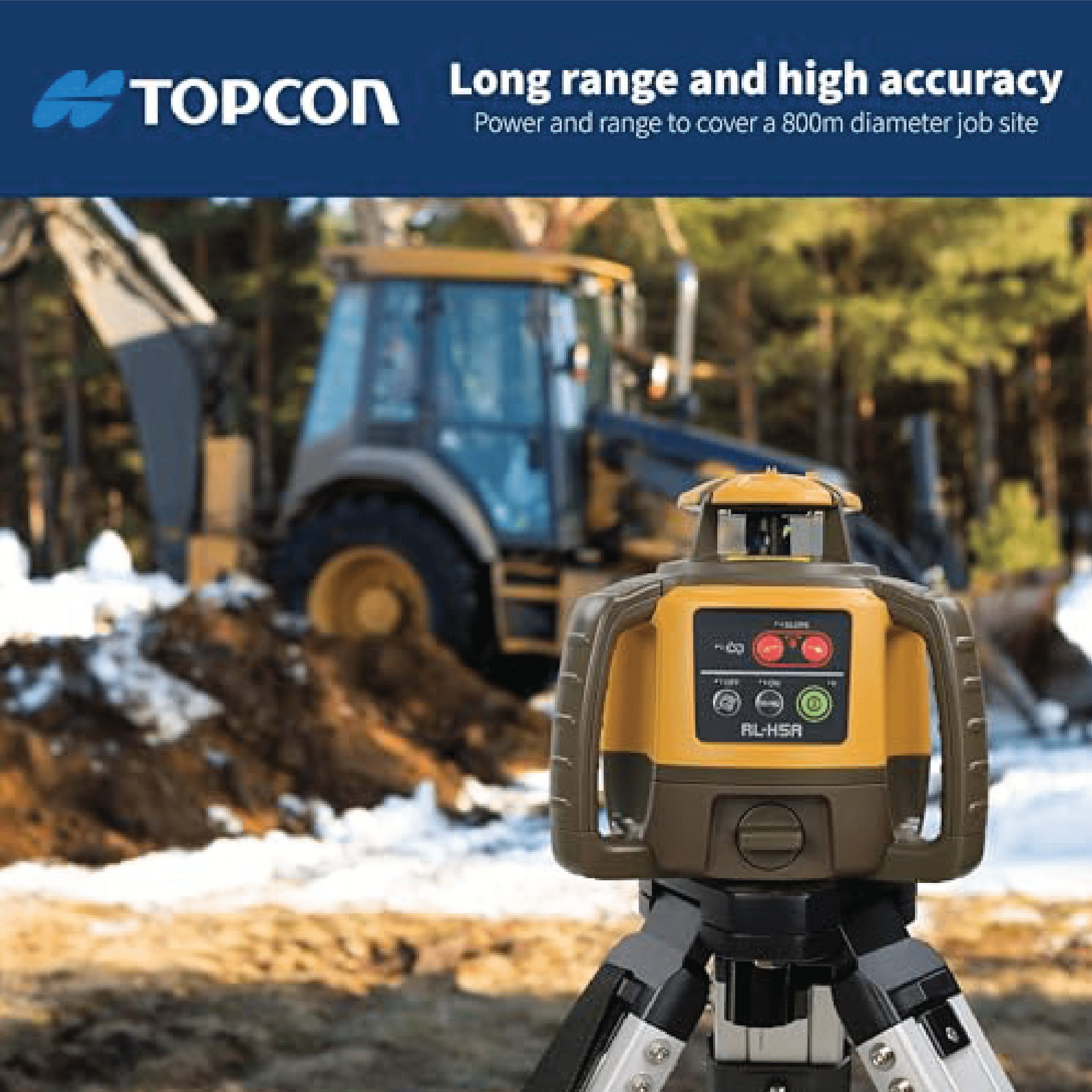

  • Long Range & High Accuracy: Up to 2,600 ft (800m) diameter range with ±1/16" accuracy at 100 ft (±10 arc seconds) for precise results on large job sites
  • Quick Self-Leveling: Electronic self-leveling within ±5 degrees; auto re-levels if bumped for fast setup and reliable performance
  • Manual Slope Matching: Single-axis manual slope capability perfect for grading, drainage, excavating, and site preparation
  • Durable Construction: IP66 rated for full dust protection and water resistance; operates in temperatures from -4°F to 122°F with shock-resistant design
Maximum measuring range 2600 ft
Measurement laser type Multi-use
Brand topcon
Power type Battery
Rec. use Construction, Commercial, Concrete, Measuring Distance, Outdoor
Features Adjustable, Accurate Measurement, Durable, Yellow Powder-Coated Body, Magnetic
Display LCD
Weight 30 lb
Dimensions 12.00 x 14.00 x 60.00 Inches
Has written warranty No
Material Metal
Model RL-H5A
Manufacturer Topcon
Color Yellow
Color category Yellow
